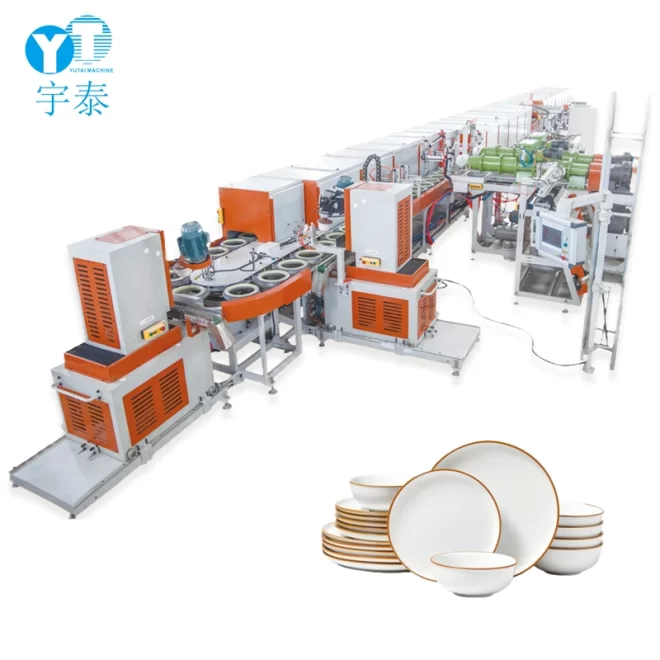

This is a fully automatic ceramic tableware production line, including pug mills, clay cutting, forming, drying, demolding, and edge trimming, which also can connect with a glazing line. All processes are finished automatically and accurately, with high working efficiency and low labor costs. It is suitable for making pottery, ceramic porcelain plates bowls, mugs, cups & saucers.
陶磁器機械メーカーとして、優れた陶磁器食器機械とサービスを提供し、お客様の成功をサポートします。
1、 The whole machine adopts the PLC control system linkage, all the movements can realize the human and machine interface control, the main transmission adopts the world’s advanced technology, its use performance is superior, the failure rate is very low, convenient maintenance and maintenance;
2、 The main power components of the whole equipment are all using high-end imported brands, Japan Toshiba Motor, Japan Sumitomo reducer, Yaskawa servo motor, Mitsubishi frequency converter (or Panasonic)
3、 All bearings are NTN, NSK, SKF; (or other high quality spare parts);
4、All cylinders and pneumatic controls shall be SMC or tec, and guide rail rods shall be Taiwan Silver or TBI or CSK
5、 The drying air duct system adopts a double-layer stainless steel air supply and dehumidification design, so that the product drying effect is more uniform and ideal, to achieve the needs of different process parameters of the manufacturer;
6、Full 304 stainless steel vacuum mud training machine, to ensure the quality and stability of mud material supply
7、 All pneumatic systems are double-layer filtration, high-quality power sources to improve the stability of the equipment;
| MODEL | 250 MODEL | 35O MODEL |
| Max finished products size | Within 6 inch bowl and 7 inch plate (mainly due to the difference in actual shrinkage rate, the reference shrinkage rate of this product is 1.16) | Within 10 inch bowl and 10.5 inch plate (mainly due to the difference in actual shrinkage rate, the reference shrinkage rate of this product is 1.16) |
| Forder type (molded billet) | Maximum size of the cup, medium bowl, and dish to φ190mm) | Maximum size of cup, medium bowl, and dish to φ290mm) |
| Maximum size of gypsum mold (standard) | Yin Mode φ240mm H150mm, | Yin mode φ340mm H150mm, Yang mode Yin mode φ340mmH80mm |
| Capacity (PCS/ hour) | 1200 | 600-720According to the actual production requirements) |
| Power | 35KW | 40KW |
| Burner heat | 50,000Kcal/hr | 60,000Kcal/hr |
| Air | 1000L/min | 1000L/min |
| Water | 200L/hr | 200L/hr |
| Moulds | 160 PCS | 160 PCS |
| 寸法 | L23000×W4300×H1800 | L31500×W4500×H1800 |
Yutaiはセラミック食器メーカーとして、厳格な品質基準と優れたサービスを維持しています。成形を合理化し、効率を高める最先端の自動化技術で、製造工程に革命を起こしましょう。
- 高品質の素材、耐久性と信頼性
- 食器のスタートから完成品まで、完全な製品レンジ
- 高効率生産ラインとインテリジェント制御システム
- セラミック機械産業で20年以上の経験
- 優れたエンジニアリングR&Dチームが技術革新を続ける
- 100カ国以上に輸出し、500以上の顧客と協力する。
- セラミックマシンのワンストップソリューションを提供
- 厳しい品質検査が1週間続く
-テクニカルサポートとオンサイト設置サービス
-オリジナル工場部品無料供給
大手セラミック機械メーカー：
セラミック食器機械の製造に注力しています：粘土製造機、セラミック成形機、乾燥機、釉薬機、セラミックキルン、セラミック印刷機、セラミック底面研削盤など。我々は、各顧客のためのワンストップソリューションと技術サポートを提供します。
